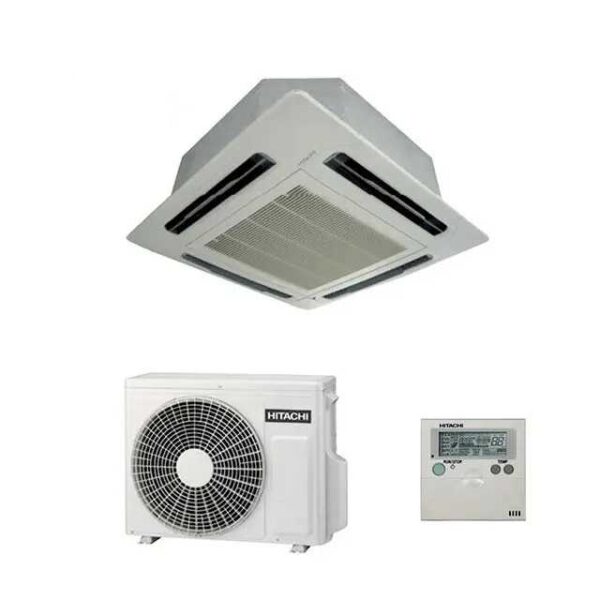

Hitachi Cassette 2Ton INV RAS-3.0 UNESNH1

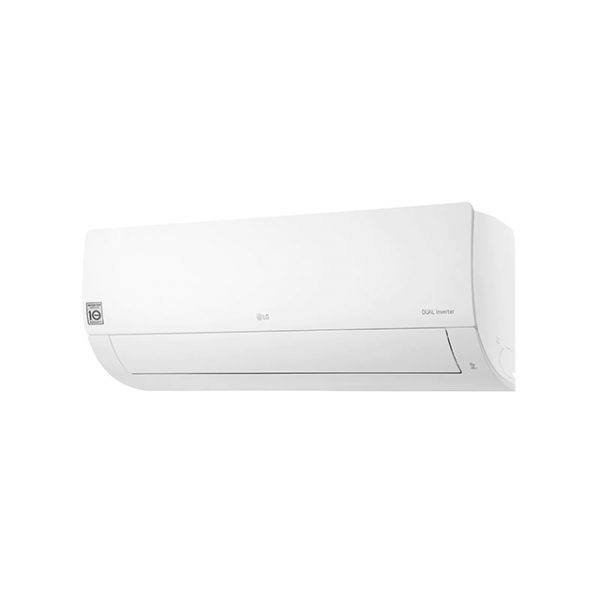

Specifications of LG Split Air Conditioner 2.0 Ton I24CGH DUALCOOL Inverter

• Dual Inverter Compressor™
• TUV Rheinland
• Energy Saving
• Fast Cooling

CAPACITY
Cooling – Min ~ Rated ~ Max(kW) 1.26/6.45/7.18

Cooling – Min ~ Rated ~ Max(Btu/h) 3,500/22,000/24,500
Heating – Min ~ Rated ~ Max(kW) 1.26/6.45/7.32

Heating – Min ~ Rated ~ Max(Btu/h) 3,500/22,000/24,500
POWER INPUT
Cooling – Min ~ Rated ~ Max(W) 240/2,010/2,420

Heating – Min ~ Rated ~ Max(W) 240/1,890/2,500
RUNNING CURRENT
Cooling – Min ~ Rated ~ Max(A) 1.14/9.60/11.46

Heating – Min ~ Rated ~ Max(A) 1.14/9.10/11.84
EER
EER(W/W) 3.21EER((Btu/h)/W) 10.95
COP
COP(W/W) 3.41COP((Btu/h)/W) 11.64
POWER SUPPLY
Ø, V, Hz 1, 220 ~ 240, 50
AVAILABLE VOLTAGE RANGE
Available Voltage Range(V) 187 ~ 276
POWER FACTOR
Cooling/Heating(%) 95/95
MOISTURE REMOVAL
Moisture Removal(l/h) 2.00
INDOOR
Air Flow Rate – Cooling, Max/H/M/L(m³/min) 21/15/12/9

Air Flow Rate – Heating, Max/H/M/L(m³/min) 21/16/13/9.5
Sound Pressure Level – Cooling, H/M/L/SL(dB(A)) 56/48/43/38/32

Sound Pressure Level – Heating, Max/H/M/L(dB(A)) 57/48/43/38
Dimensions (W×H×D) – Net(mm) 998 × 345 × 210

Dimensions (W×H×D) – Shipping(mm) 1080×422×281
Weight – Net(kg) 12.1Weight – Shipping(kg) 14.5
Exterior Color Code Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
Air Flow Rate – Max(㎥/min) 50.0

Fan Motor Speed – Cooling, Min ~ Max(rpm) 190 ~ 800
Fan Motor Speed – Heating, Min ~ Max(rpm)) 190 ~ 840

Sound Pressure Level – Cooling, Rated(dB(A)) 56
Sound Pressure Level – Heating, Rated(dB(A)) 58

Dimensions (W×H×D) – Net(mm) 870 × 655 × 320
Dimensions (W×H×D) – Shipping(mm) 1017 × 718.6 × 432

Weight – Net(kg) 42.7
Weight – Shipping(kg) 50.0Max.

Fuse Size(A) 20
Exterior Color Code Munsell 9.54Y 8.34/1.31 (RAL 9001)Operation Range – Cooling(℃ DB) 18 ~ 48
Operation Range – Heating(°C DB) -5 ~ 24Operation Range – Heating(℃ WB) -5 ~ 18
CIRCUIT BREAKER
Circuit Breaker(A) 20
POWER SUPPLY CABLE
Power Supply Cable(No. x mm2) 3 × 1.5
POWER SUPPLY TO UNIT
Power Supply to Unit Outdoor
POWER AND COMMUNICATION CABLE
Power and Communication Cable(No.×mm²) 4 × 0.75
PIPING
Size – Liquid(mm) Ø 6.35

Size – Gas(mm) Ø 15.88
Connections Method – Indoor/Outdoor Flared/Flared
DRAIN HOSE SIZE
O.D, I.D(mm) 21.5, 16.0
BETWEEN INDOOR & OUTDOOR
Piping Length – Min/Standard/Max(m) 3.6/5/20

Piping Length – No Charge(m) 5.0
Max. Elevation Difference(m) 10

Piping Connection Heat Insulation Both liquid and Gas Pipes
REFRIGERANT
Type R410APre Charge(g) 1400
Additional Charge(g/m) 20Control Capillary
Global Warning Potential 2087.5t-CO₂ eq 2.923
DEFROST METHOD
Defrost Method Reverse Cycle
TOOL CODE (CHASSIS)
Indoor/Outdoor SK/UE
COMPRESSOR
Type Twin Rotary

Model GAT156MAC
Motor Type BLDC

Oil Type/Maker POE (RB68A)/Sun Oil or Jx Nippon
Oil Charge(cc) 400
FAN(INDOOR)
Type Cross Flow FanMotor

Output(W) 58
FAN(OUTDOOR)
Type Propeller FanMotor

Type BLDC
Motor Output(W) 85.5

Motor Insulation Class E
Motor Enclosure/Ingress

Protection TEAO/IPX5
HEAT EXCHANGER
Evaporator – Material, Tube/Fin Cu/AlEvaporator – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 16 x 20 x 744) x 1
Evaporator – (ø x Row x Column x FPI x L) x Qty.(#2) (ø5 x 1 x 4 x 22 x 744) x 2Evaporator – Corrosion Protection PCM
Evaporator – Fin Type SlitCondenser – Material, Tube/Fin Cu/Al
Condenser – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 28 x 18 x 831.5) x 1Condenser – Corrosion Protection Gold
Condenser – Fin Type Louver

Specifications of LG Split Air Conditioner 1.5 Ton I18CGH DUALCOOL Inverter

• Dual Inverter Compressor™
• TUV Rheinland
• Energy Saving
• Fast Cooling

Cooling – Min ~ Rated ~ Max(kW) 1.08/5.28/5.36

Cooling – Min ~ Rated ~ Max(Btu/h) 3,685/18,000/18,300
Heating – Min ~ Rated ~ Max(kW) 1.08/5.42/6.10

Heating – Min ~ Rated ~ Max(Btu/h) 3,685/18,500/20,800
POWER INPUT
Cooling – Min ~ Rated ~ Max(W) 238/1,640/1,710

Heating – Min ~ Rated ~ Max(W) 238/1,500/1,800
RUNNING CURRENT
Cooling – Min ~ Rated ~ Max(A) 1.10/7.40/8.10

Heating – Min ~ Rated ~ Max(A) 1.10/6.82/8.52
EER
EER(W/W) 3.22

EER((Btu/h)/W) 10.98
COP
COP(W/W) 3.61

COP((Btu/h)/W) 12.33
POWER SUPPLY
Ø, V, Hz

1, 220 ~ 240, 50AVAILABLE VOLTAGE RANGE
Available Voltage Range(V) 187 ~ 276
POWER FACTOR
Cooling/Heating(%) 95/95
MOISTURE REMOVAL
Moisture Removal(l/h) 1.50
INDOOR
Air Flow Rate – Cooling, Max/H/M/L(m³/min) 19.3/13.5/12/9

Air Flow Rate – Heating, Max/H/M/L(m³/min) 20/14/13/9.5
Sound Pressure Level – Cooling, Max/H/M/L/SL(dB(A)) 55/45/43/38/32

Sound Pressure Level – Heating, Max/H/M/L(dB(A)) 56/45/43/38
Dimensions (W×H×D) – Net(mm) 998 × 345 × 210

Dimensions (W×H×D) – Shipping(mm) 1080 × 422 × 281
Weight – Net(kg) 11.5

Weight – Shipping(kg) 14.2
Exterior Color Code Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
Air Flow Rate – Max(㎥/min) 38.0

Fan Motor Speed – Cooling, Min ~ Max(rpm) 200 ~ 900
Fan Motor Speed – Heating, Min ~ Max(rpm)) 200 ~ 900

Sound Pressure Level – Cooling, Rated(dB(A)) 54
Sound Pressure Level – Heating, Rated(dB(A)) 56

Dimensions (W×H×D) – Net(mm) 770 × 545 × 288
Dimensions (W×H×D) – Shipping(mm) 925 × 593 × 393

Weight – Net(kg) 34.2
Weight – Shipping(kg) 39.3

Max. Fuse Size(A) 20
Exterior Color Code Munsell 9.54Y 8.34/1.31 (RAL 9001)

Operation Range – Cooling(℃ DB) 18 ~ 48
Operation Range – Heating(°C DB) -5 ~ 24

Operation Range – Heating(℃ WB) -5 ~ 18
CIRCUIT BREAKER
Circuit Breaker(A) 20
POWER SUPPLY CABLE
Power Supply Cable(No. x mm2) 3 × 1.5
POWER SUPPLY TO UNIT
Power Supply to Unit Outdoor
POWER AND COMMUNICATION CABLE
Power and Communication Cable(No.×mm²) 4 × 0.75
PIPING
Size – Liquid(mm) Ø 6.35Size – Gas(mm) Ø 12.7
Connections Method – Indoor/Outdoor Flared/Flared
DRAIN HOSE SIZE
O.D, I.D(mm) 21.5, 16.0
BETWEEN INDOOR & OUTDOOR
Piping Length – Min/Standard/Max(m) 3.6/7.5/20

Piping Length – No Charge(m) 7.5
Max. Elevation Difference(m) 10

Piping Connection Heat Insulation Both liquid and Gas Pipes
REFRIGERANT
Type R410A

Pre Charge(g) 1230
Additional Charge(g/m) 20

Control Capillary
Global Warning Potential 2087.5

t-CO₂ eq 2.568
DEFROST METHOD
Defrost Method Reverse Cycle
TOOL CODE (CHASSIS)
Indoor/Outdoor SK/UL2
COMPRESSOR
Type Twin Rotary

Model GAT156MAD
Motor Type BLDC

Oil Type/Maker POE (RB68A)/Sun Oil or Jx Nippon
Oil Charge(cc) 400

FAN(INDOOR)
Type Cross Flow Fan

Motor Output(W) 30
FAN(OUTDOOR)
Type Propeller Fan

Motor Type BLDC
Motor Output (W) 43

Motor Insulation Class E
Motor Enclosure/Ingress Protection TEAO/IP23
HEAT EXCHANGER
Evaporator – Material, Tube/Fin Cu/Al

Evaporator – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 16 x 20 x 744) x 1
Evaporator – Corrosion Protection PCMEvaporator – Fin Type Slit
Condenser – Material, Tube/Fin Cu/AlCondenser – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 24 x 18 x 823) x 1
Condenser – Corrosion Protection Gold

Condenser – Fin Type Louver
